Tempat asal: | JIAOZHOU CHINA |
Nama merek: | PERMIX |
Sertifikasi: | CE |
Nomor model: | PMC330 |
Kuantitas min Order: | 1 unit |
---|---|
Harga: | Negotiation |
Kemasan rincian: | ekspor paket standar |
Waktu pengiriman: | 15-20 hari |
Syarat-syarat pembayaran: | L/C, T/T |
Menyediakan kemampuan: | 5-10 unit per bulan |
Kapasitas input: | 500L | Berat input: | 800kgs |
---|---|---|---|
Kapasitas output: | 330L | Kekuatan pencampuran: | 15kw |
jumlah blade: | 1 * 2 | Warna: | jeruk |
Cahaya Tinggi: | cement bricks machine,commercial cement mixer |
PMC330 Blok Membuat Planetary Mixer Metro Tunnel Segments Kapasitas Keluaran 330L Warna Oranye
Mempertahankan Pintu
The safety control device ensures that the mixer will not start during maintenance. Perangkat kontrol keamanan memastikan bahwa mixer tidak akan mulai selama pemeliharaan. Large size maintaining door for easy maintenance and cleaning. Pintu pemeliharaan ukuran besar agar mudah dirawat dan dibersihkan.
Pelat Paduan Tahan Aus Planetary Mixer Beton Bahan Stainless Steel
Sistem transmisi
Strukturnya kompak, dan pencampuran bagian dalam gearbox yang dalam tidak akan menempel pada material dan menambah ruang pembersihan blender.
Unit gearbox dirancang khusus untuk distribusi daya seimbang ke berbagai perangkat pencampuran dan mewujudkan rotasi dan revolusi, memastikan efisiensi tinggi dan rotasi noise rendah.
Penggunaan mixer
1. Before use, the machine should have an empty test. 1. Sebelum digunakan, mesin harus memiliki tes kosong. Before the test machine, the firmness of all the connecting parts of the machine table shall be checked first, especially if the bearing part is loose during transportation. Sebelum mesin uji, kekencangan semua bagian penghubung dari meja mesin harus diperiksa terlebih dahulu, terutama jika bagian bantalan kendur selama pengangkutan. Close the main switch, access the power supply, run the empty test machine. Tutup sakelar utama, akses catu daya, jalankan mesin uji kosong.
2. Empty machine test. 2. Uji mesin kosong. The mixer can only be put into production without abnormal sound, high heat of bearing gear, etc. Pencampur hanya dapat dimasukkan ke dalam produksi tanpa suara abnormal, panas tinggi bantalan gigi, dll.
3. Jika getaran abnormal atau suara aneh terdeteksi selama penggunaan, hentikan mixer dan berikan pemeriksaan menyeluruh.
4. The load should not be too large. 4. Beban tidak boleh terlalu besar. It is generally measured by the load of the motor. Biasanya diukur dengan beban motor. The load current of the 380V motor when stirring the material should not exceed 6 amps. Arus beban motor 380V saat mengaduk material tidak boleh melebihi 6 amp. If it exceeds the load, the stirring capacity should be reduced immediately. Jika melebihi beban, kapasitas pengadukan harus segera dikurangi.
5. Managers should be familiar with the internal structure, technical performance, control structure,and operating principle of the mixer. 5. Manajer harus terbiasa dengan struktur internal, kinerja teknis, struktur kontrol, dan prinsip operasi mixer. Do not leave the workplace during operation to prevent malfunctions and damage to mechanical parts, so as to ensure safe production. Jangan meninggalkan tempat kerja selama operasi untuk mencegah kerusakan dan kerusakan pada komponen mekanis, untuk memastikan produksi yang aman.
Stainless Steel Bahan Stasioner Mixer Beton Untuk Segmen Terowongan Metro.
Spesifikasi teknis | ||||||||||||||
ITEM / (PMC) | PMC 50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1250 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 |
Kapasitas Pakan (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
Kapasitas Keluaran (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
Berat Makan (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |

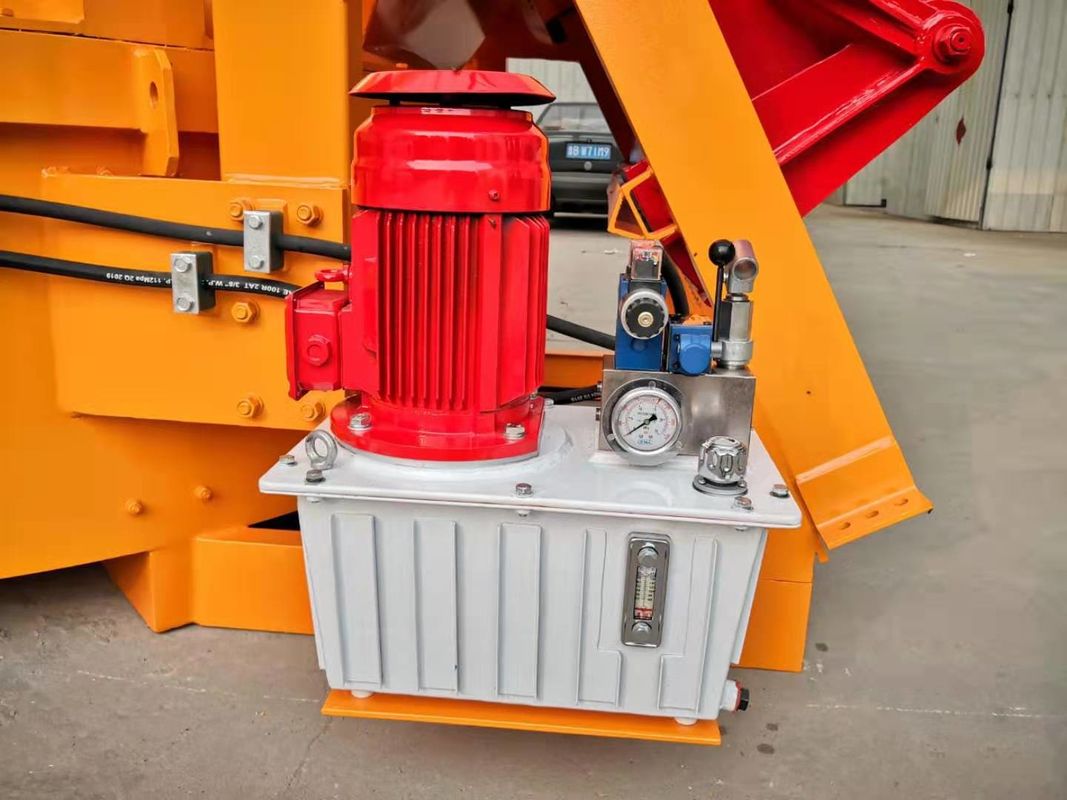

Daya Pengeluaran (kw) | Pneumatic Discharge (Pelepasan Hidraulik Opsional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
Mencampur Blade Bintang * | 1 * 2 | 1 * 2 | 1 * 2 | 1 * 2 | 1 * 2 | 1 * 2 | 1 * 3 | 2 * 2 | 2 * 2 | 2 * 2 | 3 * 2 | 3 * 3 | 3 * 3 | 3 * 3 |
Scraper Samping | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Scraper Debit | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Berat (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
Daya Angkat (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
Dimensi (L * W * H) mm | 950 * 790 * 1200 | 1664 * 1453 * 1487 | 1670 * 1460 * 1620 | 1860 * 1650 * 1780 | 1870 * 1870 * 1855 | 2230 * 2080 * 1880 | 2580 * 2340 * 2195 | 2891 * 2602 * 2237 | 3058 * 2756 * 2395 | 3223 * 2902 * 2470 | 3625 * 3230 * 2695 | 3893 * 3550 * 2875 | 3893 * 3550 * 3085 | 4594 * |
